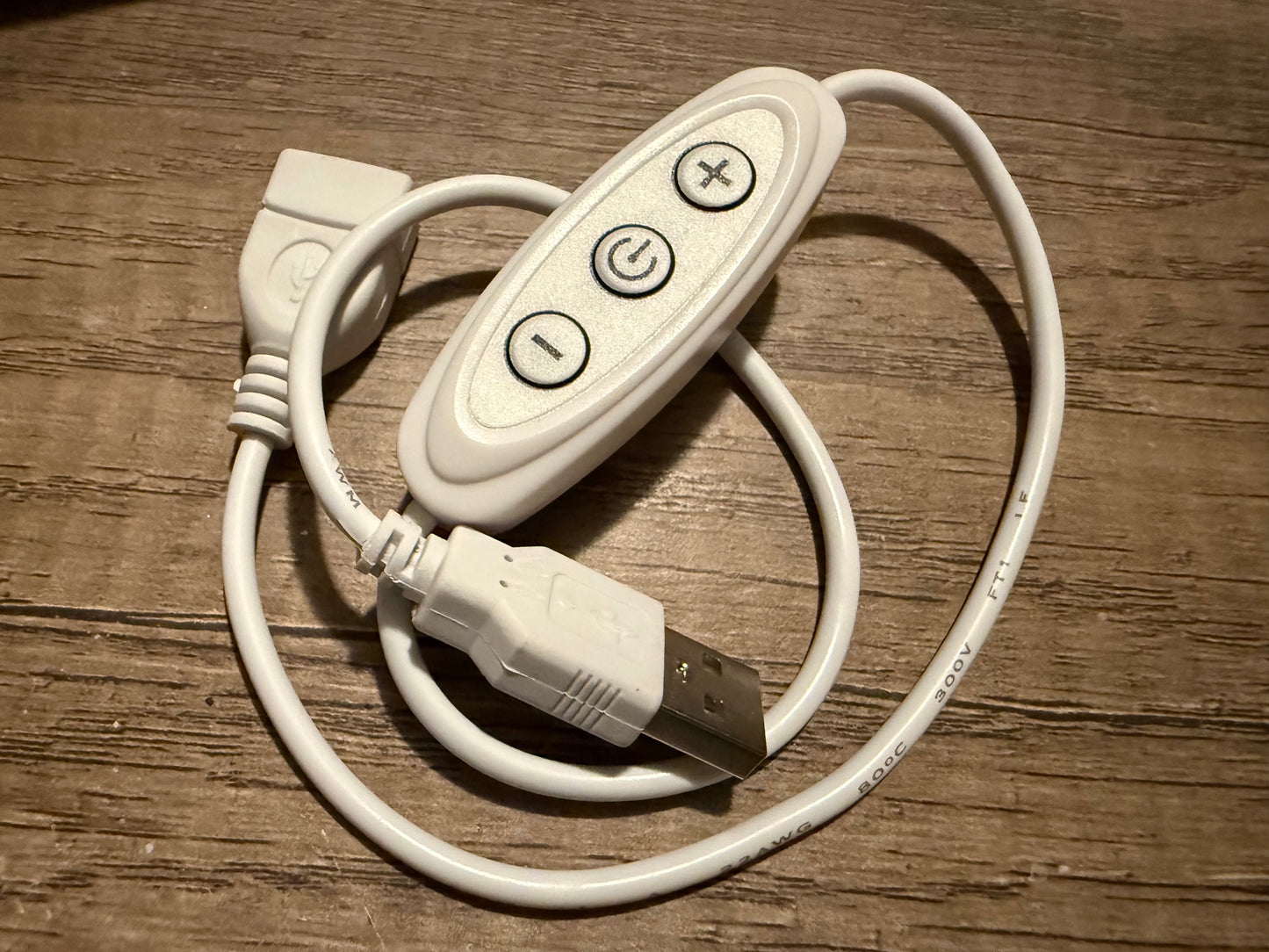

USB DIMMER SWITCH (for Pyro and Pyro+e)

Enhance the functionality of your pyro and pyro+e by introducing adjustable light settings! Experience a range of 10 settings, from dim to full brightness!

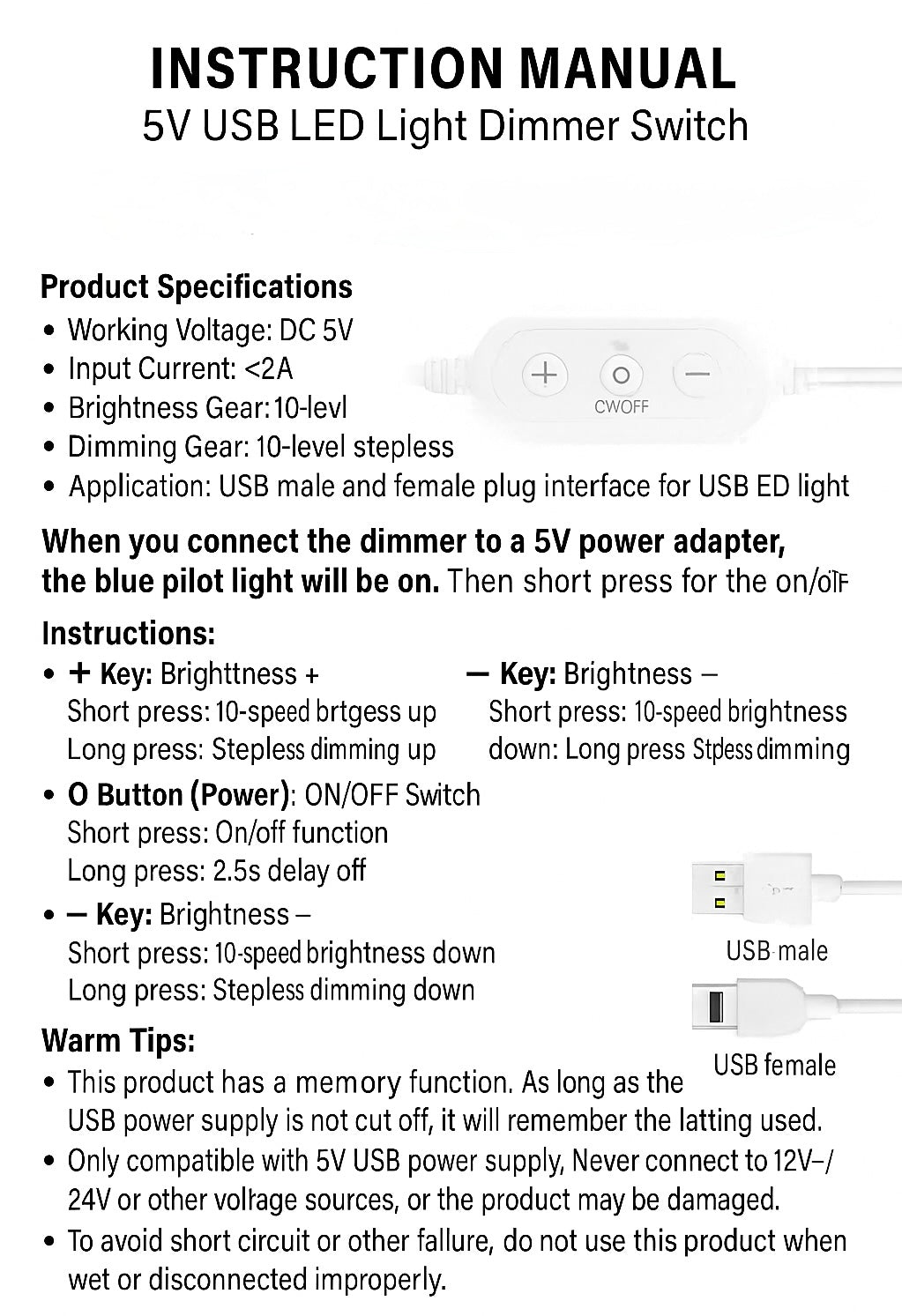

INSTRUCTION MANUAL

5V USB LED Light Dimmer Switch

Thank you for buying our product. Here is a manual for you. Please read it carefully before using the product.

Product Specifications

• Working Voltage: DC 5V
• Input Current: <2A
• Brightness Gear: 10-level
• Dimming Gear: 10-level stepless
• Application: USB male and female plug interface for USB LED light

When you connect the dimmer to a 5V power adapter, the blue pilot light will be on. Then short press for the on/off function.

Instructions:

• ➕ Key: Brightness +

• Short press: 10-speed brightness up
• Long press: Stepless dimming up
• O Button (Power): ON/OFF Switch

• Short press: On/off function
• Long press: 2.5s delay off
• ➖ Key: Brightness –

• Short press: 10-speed brightness down
• Long press: Stepless dimming down

Warm Tips:

• This product has a memory function. As long as the USB power supply is not cut off, it will remember the last setting used.
• Only compatible with 5V USB power supply. Never connect to 12V–24V or other voltage sources, or the product may be damaged.
• To avoid short circuit or other failure, do not use this product when wet or disconnected improperly.
